90° gauge isolators with lateral 1/2" port for inspection

FT 01.291

90° gauge isolator for manometer, connection M-F with 1/2" lateral port and threaded cap
90° needle valves with 1/2" lateral port and handwheel
Carbon steel
3D Draw
Download PDF
90° gauge isolators with lateral 1/2

Product code composition

Choose the different options below to configure the most useful product code for your needs.

The code will be generated and sent automatically by clicking on "Submit a request".

FT 01.291
Connection type

* (Male-Female)
** (Female-Female - standard for FT 292)
*** (Plate Cetop 03)
**** (Plate)
01 (Female-Female)
04 (Rigid pipes - DIN 2353)
05 (Flexible pipes DIN 3861-DIN 7611)

Thread

* (BSPP - standard)
** (BSPT-BSPP - standard)
NPT

Gasket

* ( NBR - standard )
** (V - FPM - standard - for AISI 316 valves )
E (EPDM)
N (NEOPRENE)
S (SILICONE)
V (FPM)

Submit a request

The request can be sent only upon completion of all the choice fields

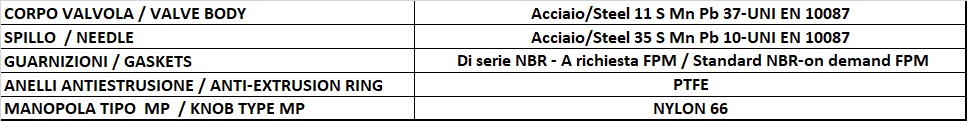

Technical information

They are generally used for hydraulic elevators subjected to initial and periodical tests by the institution in charge. They are normally used to protect the gauge as they have the double function of dampening pressure shock, when opening, and of isolating it from pressure line Moulded in high-resistance steel, protected by an accurate treatment, subjected to strict tests, they ensure reliability and long life. A rotating swivel nut allows the user to plug the manometer, directing it to the more suitable position, with a single blocking operation. The sealing, supplied as standard, and inserted in the nut, prevents any leakages between the connection and the gauge. For pressure gauge with taper threads, it will be necessary to use copper washers FT 1201 (to be requested separately). Equipped with connectors FT 299-24, they also allow the connection of manometers with 1/2” BSP port. Suitable for pressure up to 400 bar and temperature from -20° to +100° they can be panel mounted by use of log panel nut (G), supplied on request.
