FT 358/2

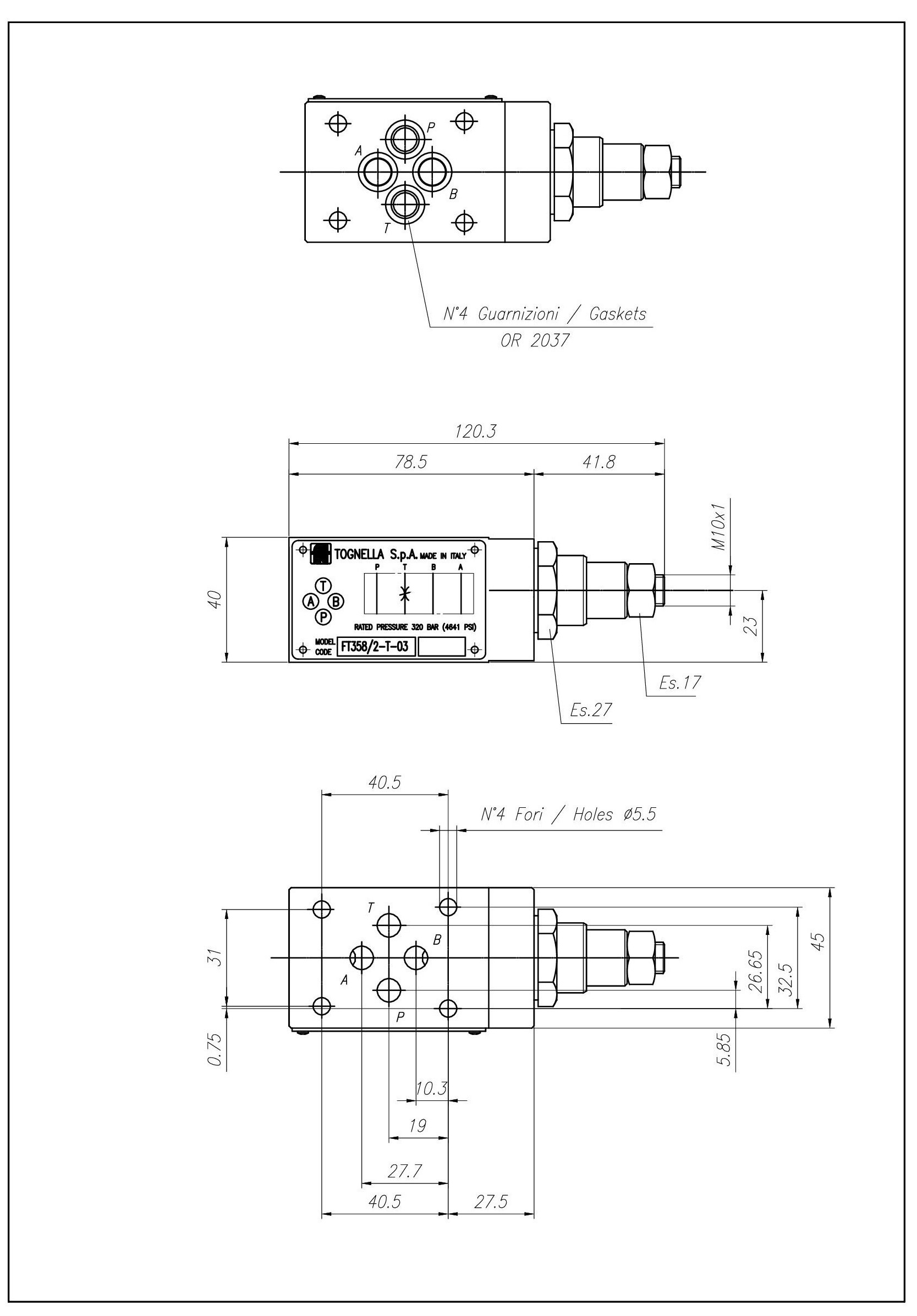

Double-acting flow control stackable valves Cetop 3 available with controlled flow on A-B-P or double A+B ports, max. working pressure 320 Bar, adjustable oil flow rate from 0,5 to 35 Lt./min.
Product code composition
Choose the different options below to configure the most useful product code for your needs.
The code will be generated and sent automatically by clicking on "Submit a request".
03 ( Cetop 03 )
05 ( Cetop 05 )
* METER IN ( standard )
H ( METER OUT )
** (double acting)
* NBR ( standard )
V
( FPM )
The request can be sent only upon completion of all the choice fields
Technical information
Flow control valves, not compensated, for modular mounting with subplate surface in accordance with ISO 4401-03. It allows a fine fluid regulation in two directions even with low flow rate. Version with adjustment screw, equipped with lock nut for flow rate regulation.
