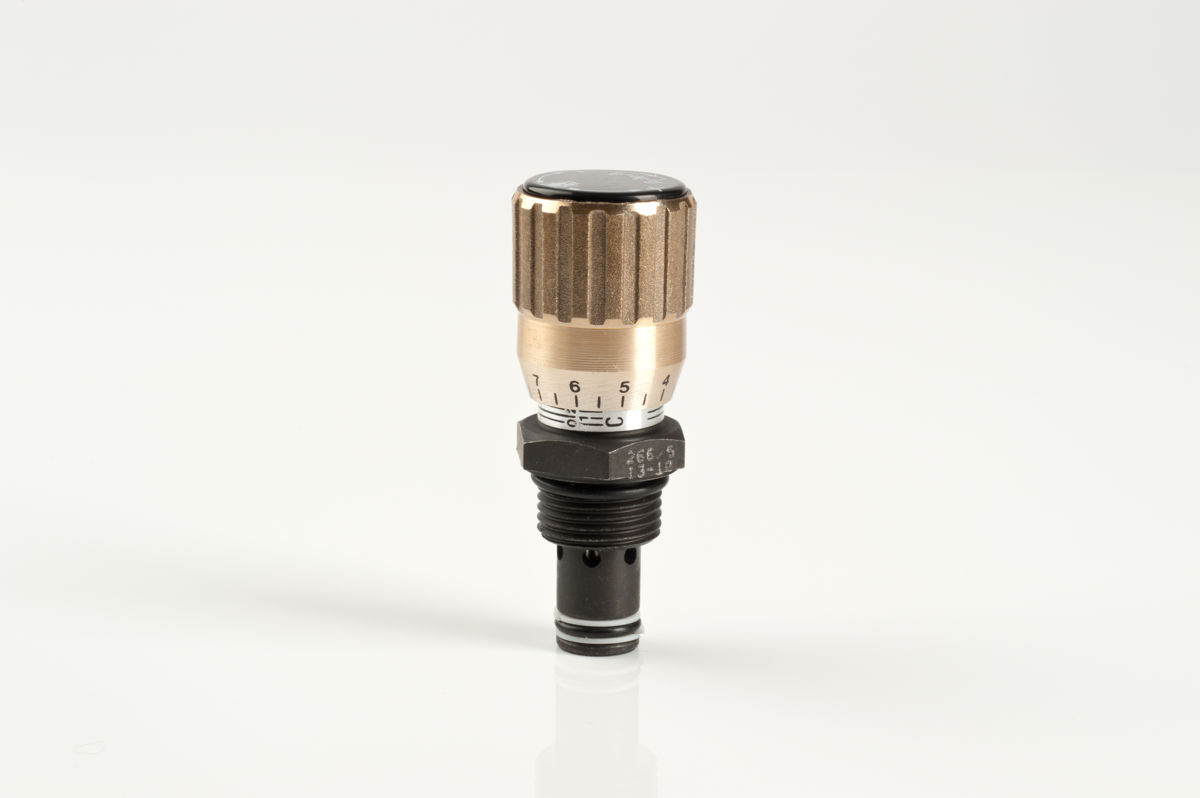

UNF Threads cartridge single-acting flow control valves

FT 266/5

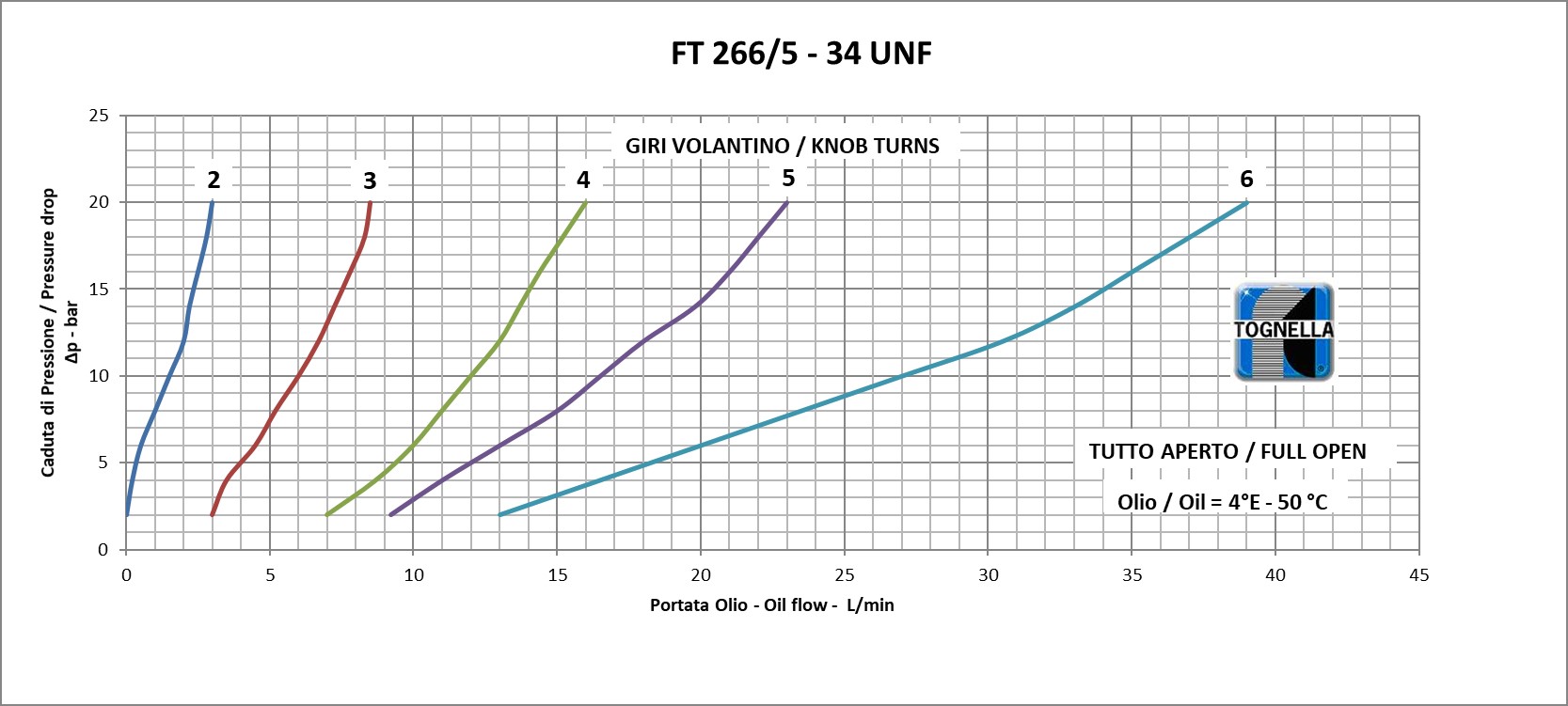

Single-acting flow control valves available from 3/4" to 7/8" size - UNF THREADS. Max. working pressure 320 Bar, adjustable oil flow rate from 1 to 70 Lt./min. ( depending on the size)

Single-acting control
No pressure compensated flow control
UNF threads
Carbon steel
3D Draw
Download PDF
UNF Threads cartridge single-acting flow control valves

Product code composition

Choose the different options below to configure the most useful product code for your needs.

The code will be generated and sent automatically by clicking on "Submit a request".

FT 266/5
Gasket

* (NBR - standard)
** (V - FPM - standard per valvole Inox)
E (EPDM)
N (NEOPRENE)
S (SILICONE)
V (FPM)

Handwheel

* (MA - standard - aluminium)
MP (ABS)
RA (Aluminium spoked)
** no knob

Sfiato

* (no bleed)
S (with bleed)

Versione Speciale
Submit a request

The request can be sent only upon completion of all the choice fields

Technical information

They control and eventually shut-off the flow in one direction, allowing a free return in the opposed direction.
