FT 358/5
Single-acting flow control stackable valves Cetop3 available with controlled flow on A-B or double A+B ports, max. working pressure 320 bar, adjustable oil flow rate from 0,5 to 35 Lt./min.
Product code composition
Choose the different options below to configure the most useful product code for your needs.
The code will be generated and sent automatically by clicking on "Submit a request".
03 ( Cetop 03 )
05 ( Cetop 05 )
* METER IN ( standard )
H ( METER OUT )
** (double acting)
* NBR ( standard )
V
( FPM )
The request can be sent only upon completion of all the choice fields
Technical information

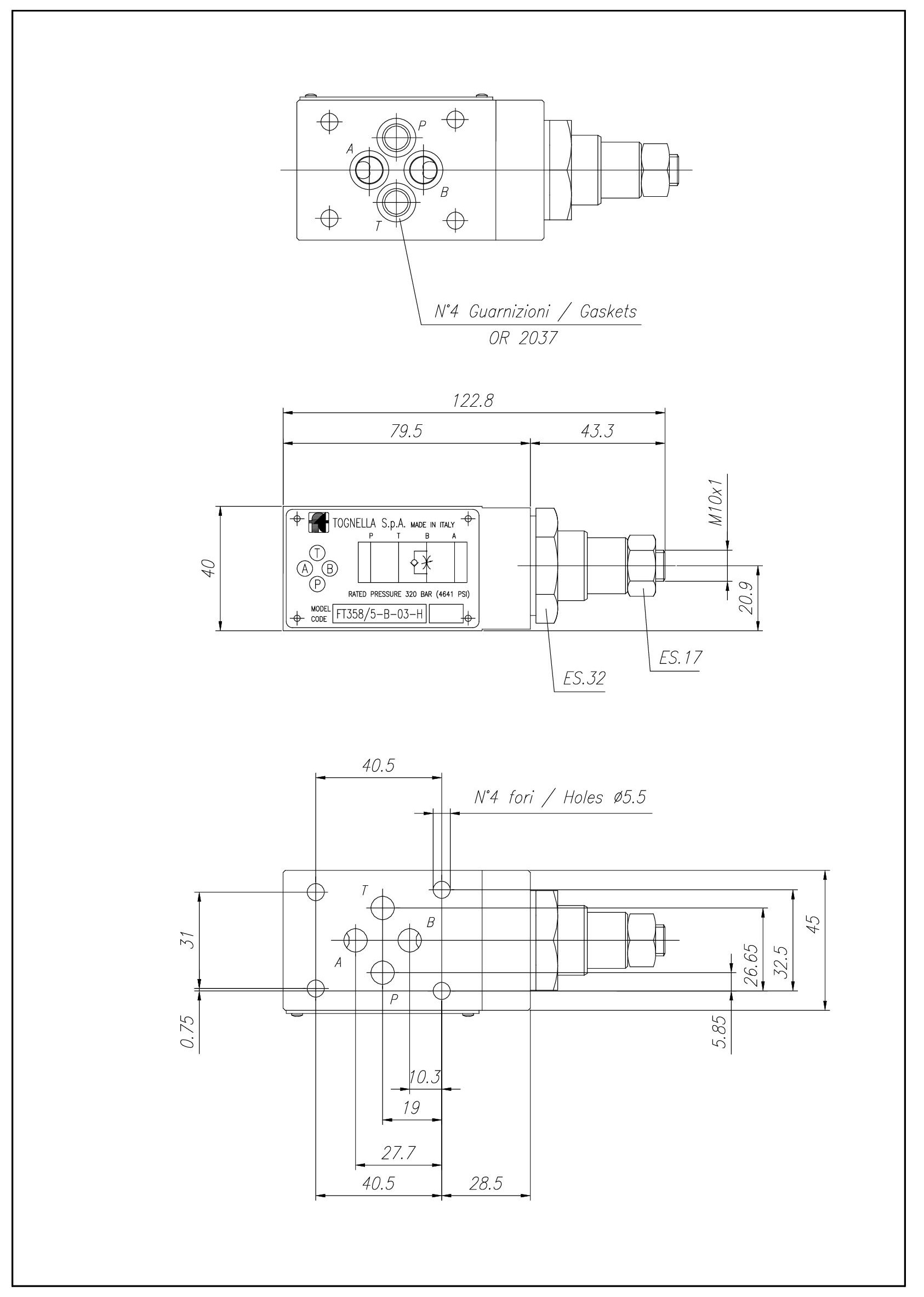

Flow control valve, not compensated, for modular mounting with subplate surface according to ISO 4401-03. It allows a fine fluid regulation in a direction even with low flow rate, allowing the free flow in the opposite one. Single regulation available on A or B or double on A+B. Version with adjustment screw, equipped with lock nut for flow rate regulation.
