FT 357/5
Single-acting flow control stackable valves Cetop5 available with controlled flow on A-B or double A+B ports, max. working pressure 320 bar, adjustable oil flow rate from 3 to 45 Lt./min.
Product code composition
Choose the different options below to configure the most useful product code for your needs.
The code will be generated and sent automatically by clicking on "Submit a request".
03 ( Cetop 03 )
05 ( Cetop 05 )
* METER IN ( standard )
H ( METER OUT )
** (double acting)
* NBR ( standard )
V
( FPM )
The request can be sent only upon completion of all the choice fields
Technical information

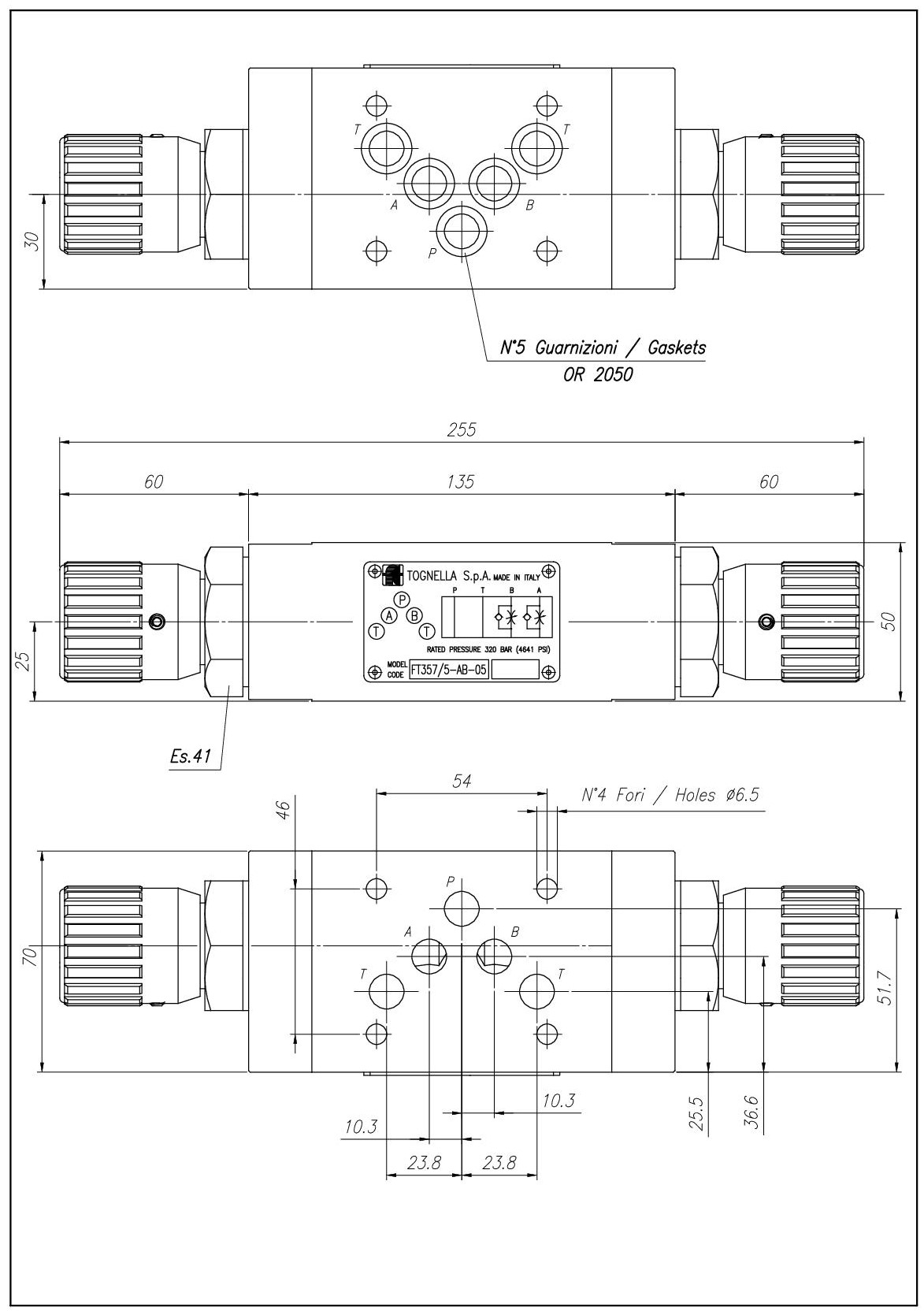

Flow rate control valve, not compensated, for modular mounting with subplate surface according to ISO 4401-05. It permits a fine fluid regulation in one direction even with minimum flow rate, allowing the free flow in the opposite direction. Single regulation available on A or B or double A+B. Version with handhweel for flow rate allows its locking thanks to the screw it is equipped with. Flow rate 65L./min.
